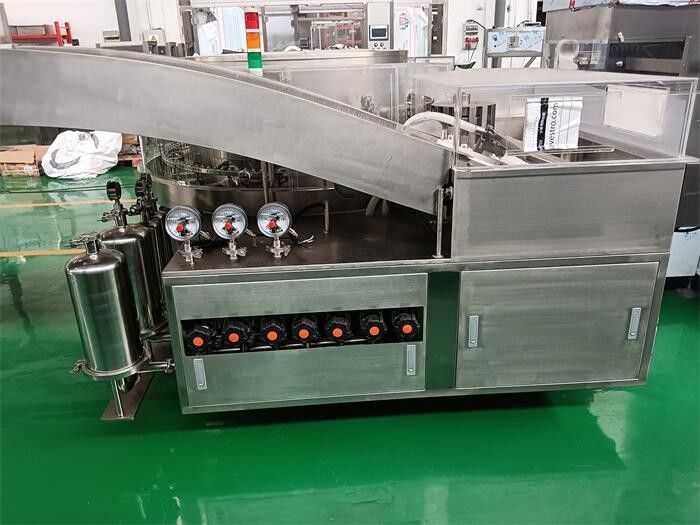

Automatic Ultrasonic Ampoule Washing Machine

Engineered specifically for sterile pharmaceutical manufacturing, this fully automatic ampoule washing machine utilizes advanced ultrasonic cavitation technology to clean and prepare glass ampoules for high-value injectables, vaccines, and biologics. Designed to operate with exceptional resource efficiency, the system seamlessly integrates automated bottle feeding, washing, and drying processes within a compact, stainless-steel architecture.

Core System Features

• Ultrasonic Cavitation Technology: Employs high-frequency sound waves to generate micro-bubbles in the cleaning fluid. This cavitation effect effectively dislodges and removes stubborn particulate matter and contaminants from the inner and outer walls of the ampoules without inducing mechanical stress on the glass.

• High Resource Efficiency: Optimized for sustainable manufacturing environments, the machine operates with an exceptionally low water consumption rate of just 1 L/hour and requires only 2.5 kW of power. This drastically reduces operational utility costs while maintaining strict hygiene standards.

• Integrated Pneumatic Cleaning: Features a high-performance air pressure system operating at 0.5 – 0.7 Mpa (with an air consumption of 0.3m³/hour) to provide additional mechanical flushing power, ensuring the complete removal of residual cleaning agents and particulates.

• Intelligent PLC Control: Governed by a Programmable Logic Controller (PLC) that provides precise manipulation over the washing parameters, cycle times, and mechanical synchronization. The system allows for easy customization of Standard Operating Procedures (SOPs) for different ampoule batches.

• Automated Continuous Workflow: The system architecture integrates automated bottle feeding, washing, and drying stages into a continuous mechanical loop, reducing manual handling and lowering the risk of cross-contamination.

Target Applications

This equipment is highly suited for strict aseptic environments, including:

• Pharmaceutical Manufacturing: Cleaning of ampoules for liquid injectables, vaccines, and sterile medicinal solutions.

• Biotechnology & Research: Preparation of sterile glassware for laboratory environments and clinical trials.

• Healthcare Facilities: Hospital-based sterile compounding and preparation centers.

Technical Specifications
