High Precision Ampoule Filling Line for Solutions, Filling with Nitrogen CE, GMP Complaince

High Precision Ampoule Filling Line for Sterile Solutions with Nitrogen – GMP-Compliant, 1–20 ml, Up to 36,000 Ampoules/hour

Engineered for sterile injectable solutions, vaccines and biologics, this high precision ampoule filling and sealing line integrates washing, tunnel sterilization, nitrogen flushing, filling and flame sealing in a compact GMP-compliant system. It is designed for 1–20 ml ampoules and delivers ±0.5% filling accuracy with a breakage rate ≤1% and clarity ≥99%, making it ideal for demanding pharmaceutical applications.

Key Selling Points & Unique Advantages

• Full GMP / FDA / cGMP compliance

  • Designed for GMP production with ISO-class cleanroom compatibility and validation-ready documentation.
  • Supports 21 CFR Part 11–ready control and data integrity when combined with compliant SCADA/PLC architectures.

• Integrated nitrogen protection for sensitive injectables

  • Pre- and post-filling nitrogen flushing minimizes oxygen exposure, ideal for vaccines, biologics, insulin and other oxygen-sensitive drugs.
  • Improves product stability and extends shelf life compared to conventional ampoule lines without inert gas handling.

• High-speed, high-precision performance

  • Capacity: 15,000–36,000 ampoules/hour depending on ampoule size and configuration.
  • Filling precision: ±0.5% dosage deviation, in line with pharmacopoeia standards.
  • Breakage rate <1% (whole line) to reduce glass waste and batch loss.

• Complete upstream–downstream integration

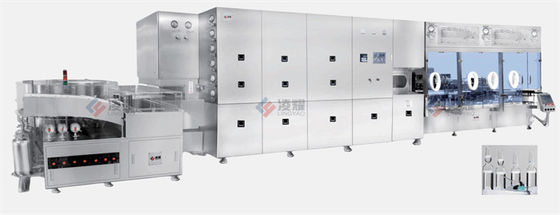

  • Automatic sequence of water flushing, air flushing, tunnel drying & sterilization, cooling, nitrogen filling and flame sealing in one continuous line.
  • Tunnel-type hot air circulation sterilization oven ensures consistent depyrogenation and microbial reduction.

• Advanced intelligent control system

  • PLC + HMI + intelligent electronic control for centralized control of speed, temperature, gas flow, and filling volume.
  • Easy recipe management for different ampoule sizes (1–20 ml) and products, supporting fast format changeover.

• Flexible sealing gas options

  • Compatible with liquefied gas + oxygen, oxyhydrogen generated gas, or natural gas + oxygen for stable and reliable flame sealing.

• Energy-optimized, robust design

  • Uses 316L stainless steel contact parts and hot-air tunnel technology to balance throughput and energy consumption, an advantage in high-temperature markets such as the Middle East.
  • Reduced power demand at the sealing station compared with older high-consumption designs, while core line power remains aligned with global high-speed lines.

Technical Parameters

• Competitive edge vs typical competitors

  • Higher top-end capacity (up to 36,000 ampoules/hour) vs many standard lines that stop around 18,000–25,000 ampoules/hour in similar size ranges.
  • Nitrogen filling and flushing integrated as standard option, not an add-on on many basic machines.
  • ±0.5% filling accuracy with ≤1% breakage rate, which outperforms low- to mid-range solutions that often work at ±1–2% and higher glass loss.
  • Designed to combine German-level engineering concepts with cost-effective Asian manufacturing, offering a better price–performance ratio than many European-only systems.
