| Brand Name: | Lingyao |
| Model Number: | LY220A-III |
| MOQ: | 1 unit |
| Price: | USD 5,000-50,000 per unit |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 pcs per month |

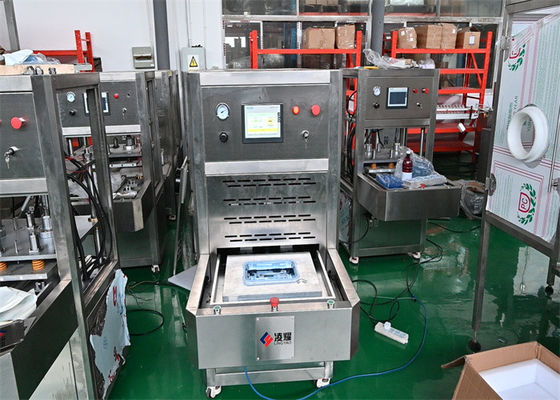

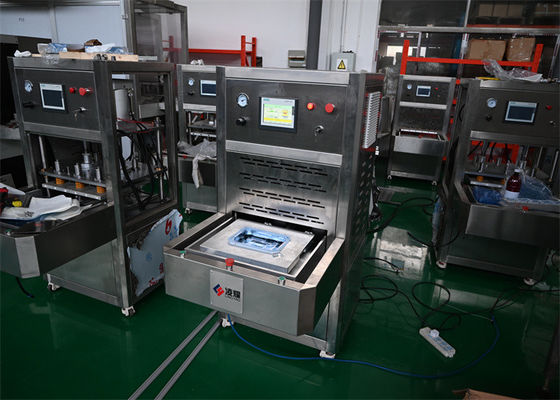

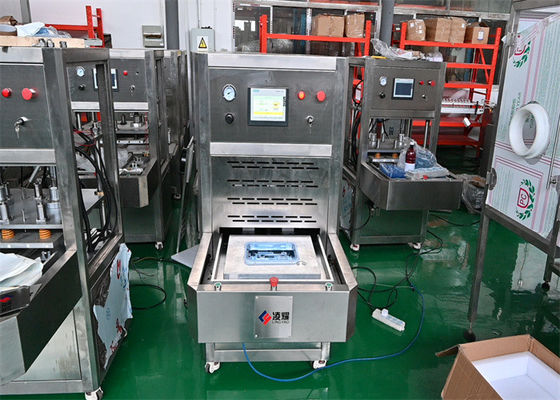

Pharma Blister Package Sealing Machine Tyvek sealing with PETG/PET/PVC blister tray
This Pharma Blister Package Sealing Machine is a device used for sealing PET, PETG, PVC, PE, PP and other plastic materials with cardboard for medical devices.
The main body of this Pharma Blister Package Sealing Machine is designed based on advanced European technology, with upgrades and improvements tailored to meet the production needs of customers, making it a technically mature device for sealing plastic materials with cardboard.
The sealed products have a clear, transparent, moisture-proof and high-quality appearance.
The Pharma Blister Package Sealing Machine adopts PLC control combined with human-machine interface operation, featuring comprehensive functionality, simple operation, and stable and reliable performance, in compliance with GMP specifications.
Due to the large mold area and the multi-die cutting plates (standard version one die cutting two), the Pharma Blister Package Sealing Machine to a certain extent meets the needs of enterprise-scale production, making it particularly suitable for use in the medical device industry.
| Model | LY-220A |
| Cutting Frequency | 10-25 times/min |
| Tooling layout | according to product size |
| Tooling max size | 500mm X 400mm |
| PET thickness | 0.3mm-1.0mm |
| Dialysis Paper | 50-100g x 620 |
| Air pressure and consumption | 0.6-0.8 Mpa/10-20 cbm/hour |
| Voltage/Frequency | 220V/50Hz |
| Total Power | 5KW |
| Machine Size | 1200mm x 800mm x 1650mm |
| Weight | 500 KGs |
After Sales Service:
1. Packing: Export packing standard
2. Shipment:
3. Support:
