| Brand Name: | Lingyao |
| Model Number: | LYLTJ |
| MOQ: | 1 unit |
| Price: | USD 3000-4000 per unit |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 pcs per month |

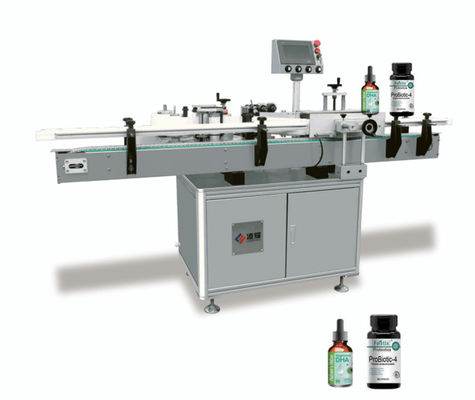

Automatic Labeling Machines For Round Bottle Tubes with Siemens motor, PLC, touch screen
Lingyao vial automatic labeling machine LYLTJ Cutting-Edge Touchscreen Interface The printer features a cutting-edge touchscreen interface that revolutionizes the labeling process. Operators can effortlessly navigate through settings, adjust parameters, and access various functions with intuitive touch controls. This user-friendly interface enhances operational efficiency and simplifies the overall packaging workflow.
The difference between mechanical coding and pneumatic coding in bottle labeling machines lies in their working principles and operation methods. Mechanical coding achieves coding actions through mechanical structures, usually driven by motors, to imprint characters or patterns on the bottles. Pneumatic coding, on the other hand, uses air pressure to drive the coding head for printing, controlling the content and position of the coding by adjusting the air pressure and timing.
The advantages of a vertical bottle labeling machine include:
Wide applicability: Vertical bottle labeling machines can be used for bottles of various shapes, such as round bottles, square bottles, etc., and are suitable for labeling requirements of different industries.
High stability: Vertical bottle labeling machines use specially designed fixtures and transmission systems to ensure stable and precise labeling, improving production efficiency.
Easy operation: Vertical bottle labeling machines are usually equipped with a user-friendly interface operating system, making operation simple and convenient, reducing human errors.
High labeling accuracy: Vertical bottle labeling machines use high-precision sensors and control systems to achieve high labeling accuracy, ensuring precise labeling positions.
High level of automation: Vertical bottle labeling machines typically have functions such as automatic feeding, automatic labeling, and automatic waste discharge, enabling fully automated production, improving production efficiency and quality.
In summary, vertical bottle labeling machines have the advantages of wide applicability, high stability, easy operation, high labeling accuracy, and a high level of automation, making them an ideal choice for labeling on modern production lines
| Items | parameters | ||
| Stable output(pcs/min) | 30-150 pcs/min different outputs duo to different bottle sizes and speeds |
||
| Bottle size(ML) | 20-1000ml | ||
| Specification of label reel | The diameter of the self-adhesive label reel is no more than 300mm, the maximum width of the reel is 70mm, and the diameter of the reel is 76mm | ||
| Specification of standard label | Width 25-70mm | ||
| Air pressue(MPA) and consumption | 0.3-0.6/5-10m³/h | ||
| Voltage(V)/Frequency(Hz) | 220V,50Hz | ||
| Total Power | 0.8 | ||
| External dimensions(mm)(length x width x height) | around 2000x700x1300mm | ||
| Net weight(kg) | 260 | ||
Q&A:
Q: What types of products can be labeled using Lingyao labeling machines? A: Lingyao labeling machines can label a wide range of products including bottles, cans, vials, ampoules and round bottles in various industries.
Q: What labeling methods are available with Lingyao labeling machines? A: Lingyao labeling machines offer options for wrap-around labeling, front and back labeling, top labeling, bottom labeling, and sleeve labeling to meet different labeling requirements.
Q: How can Lingyao labeling machines ensure accurate label placement? A: Lingyao labeling machines are equipped with advanced sensors and precision controls to ensure accurate label placement on products, minimizing errors and waste.
Q: Can Lingyao labeling machines handle different label sizes and shapes? A: Yes, Lingyao labeling machines are designed to handle a variety of label sizes, shapes, and materials, providing flexibility for different labeling needs.
Q: What is the production speed range of Lingyao labeling machines? A: Lingyao labeling machines offer customizable production speeds ranging from 30 to 150 labels per minute, allowing for efficient labeling operations.
