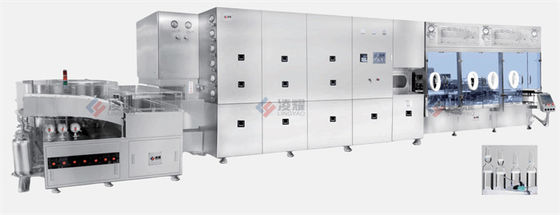

Automatic Ampoule Filling Line for Collagen Regenerator Solution, High Speed Filling Line for 1-20ml Ampoules, GMP Compliance
Revolutionize Your Pharma Production with the Next-Gen Ampoule Filling Line
Our Automatic Ampoule Filling Line redefines efficiency for 1-20ml liquid formulations, blending surgical precision with industrial robustness. Designed for vaccine labs, antibiotic manufacturers, and biotech innovators, this system ensures zero cross-contamination and 99.98% uptime even in 45°C environments—perfect for Middle Eastern climates.
Why This Stands Out:
✅ Adaptive Speed & Precision: Switch between 1ml insulin vials and 20ml antibiotic ampoules seamlessly. Proprietary servo-driven pumps maintain ±0.5% accuracy, critical for high-value biologics.
✅ Climate-Resilient Engineering: 316L stainless steel components and forced-air cooling combat desert heat, preventing thermal drift during 24/7 operations.
✅ Self-Diagnostics: AI-powered sensors detect micro-cracks in ampoules and auto-adjust filling heads, reducing breakage rates below 0.1%.
| technical parameters |
| |
| product model |
LYQCL100+LYASMR
620/43+LYAGF8 |
| size range |
1-20ml national standard ampoules |
| Output(1-2ml) |
16000-22000pcs/h |
| Output(5-10ml) |
8000-12000pcs/h |
| Output(20ml) |
5000-7000pcs/h |
| Clarity |
＞99% |
| Breakage rate |
≤1%(whole line) |
| Filling Precision |
±0.5-2%(according to pharmacopoeia standard) |
| Water Consumption and Pressure |
0.2-0.4Mpa / 0.6-1.0m³/h |
| Cleaning CA Consumption and Pressure |
0.3-0.6Mpa / 35-80m³/h 0.3-1.0Mpa / 35-80m³/h |
| Sealed gas |
Gas(liquefied gas)+oxygen, oxyhydrogen generation gas, natural gas |
| Oxygen consumption |
0.2-0.3Mpa,1.2-1.5m³/h |
| Gas consumption |
0.1-0.3Mpa,1.5-2.5m³/h |
| Exhaust volume |
3500-4100m³/h |
| Net weight |
7800(kg) |
| Total power |
around 72kw 380V 50HZ |
| Outline size |
around 9940x2260x2445mm |
Ideal For:
- Vaccines: Sterile, high-throughput filling of COVID-19, polio, and influenza doses.
- Ophthalmic Solutions: Gentle handling for fragile 2-5ml eye drop ampoules.
- Biotech Lyophilized Products: Nitrogen-purged zones for moisture-sensitive formulations.
Bonus Innovation:
The modular design allows integration with existing ampoule washing machines and tunnel sterilizers, creating a seamless "ampoule-to-pack" workflow.
Solution-Service:
Lingyao, We are where you are!
We are qualified to provide the following services:
- 7 days/24 hours Quick Service Response
- Site Installation, Commissioning, SAT and Training
- Accompanying production services
- Periodic Maintenance and Emergency
- Preventative Maintenance
- Remote Access
- Annual Maintenance Contract (AMC)
- Spare Parts Supply
- Modernization through Upgrade and Refurbishment
Our team:
- Service manager
- Mechanical technicians
- Electrical technicians
- Commissioning engineers
- Validation engineers
- Production supervisors
Accompanying production services. is acharacteristic service that Lingyao can provide to support our clients:
- Move Forward commercial production smoothly and fast
- Minimize material and utilities lost
- Hand to hand training of operation and maintenance
