| Model Number: | LYWSJ01 |
| MOQ: | 1 unit |
| Price: | USD 5000-50,000 per unit |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 pcs per month |

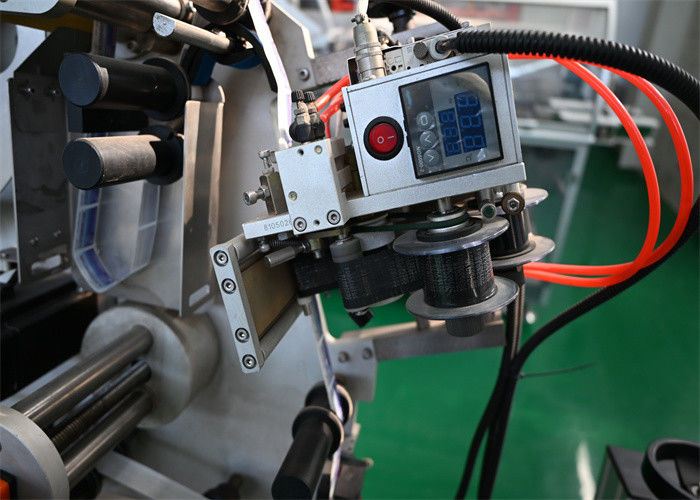

Automatic bottle labeling machine PLC control with code printing, sticker apply
Automatic bottle labeling machine Brief Introduce:
The entire electrical control system is PLC-controlled, with a user-friendly and intuitive touch screen operation. The conveyor belt, bottle separation device, and label support device are individually adjustable with motor drive. Utilizing screw material distribution and star wheel bottle positioning enhances the Automatic bottle labeling machine's versatility and accuracy. The elastic structure of the top belt allows for adaptation to bottles with varying heights. A special label support structure ensures effective bottle support without causing wrinkles or bubbles. This combination of features results in precise and efficient pharmaceutical vertical labeling, catering to a wide range of packaging needs while maintaining high accuracy levels.
Automatic bottle labeling machine Spec:
| Main technical parameters | |
| end mark device type | Panasonic servo motor |
| Stop- calibration accuracy | +/- 0.3mm |
| The labeling accuracy | +/- 0.5mm (not be affixedlabe land error) |
| standard speed: | 3-75m/min |
| material size | (p18~ 30mm)xH10~ 100mm |
| label size | within 90 mm |
| table production speed | 400- 500pcs/min |
| operation direction | left,right |
| The conveyor belt height | 850+50mm |
| The roller chain conveyor belt speed | 3~27m/min |
| weight(KG) | about 400 |
| size(mm) | L4200xW1520xH1800 |
| Power | AC220V 5% 50/60Hz 2000W |
| operation temperature | 0~ 50C |
Automatic bottle labeling machine Features:
The Automatic bottle labeling machine offers the flexibility to add color ribbon printers and inkjet printers, with automatic alarm signals and machine stoppage when the ribbon or ink runs out and printing cannot proceed. This Automatic bottle labeling machine employs photoelectric sensors for bottle detection, ensuring high detection precision. The memory storage program function allows for the storage of 50 sets of parameters, each customizable with unique program names. This feature enables seamless switching between different specifications or production capacities by simply recalling the corresponding parameters, eliminating the need for readjustment and significantly boosting work efficiency. This advanced functionality streamlines operations and enhances productivity, making the machine a reliable and efficient choice for pharmaceutical vertical labeling applications.
