Ampoule Filling And Sealing Machine
Created with Pixso.

Precision Ampoule Filling Machine for Anesthetics Solutions High Speed Pharmaceutical Production Line with Ultrasonic Rotary Washing Machine

Precision Ampoule Filling Machine for Anesthetics Solutions High Speed Pharmaceutical Production Line with Ultrasonic Rotary Washing Machine

Brand Name: Lingyao
Model Number: LYAPL1-10
MOQ: 1 unit
Price: USD 150,000-350,000 per unit
Payment Terms: D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1 unit per month
Detail Information
Place of Origin:
China
Certification:
CE, ISO, GMP
Machine Name:
Ampoule Filling Machine
Function:
Ampoules Washing, Drying, Filling, Wire Sealing
Filling Volume:
1-20ml
Filling Liquid Type:
Anesthetics Solutions
Output Capacity:
8000-26000 BPH
Ampoules Material:
Glass
Washing Machine Type:
Ultrasonic Rotary
Oven Style:
Tunnel Dry Heating
Sealing Type:
Wire Sealing
Filling Accuracy:
+/-0.5%
Breakage Rate:
<0.5%
Nitrigon Filling:
Yes
CIP/SIP:
Yes
LAF:
Yes
Packaging Details:
carton, wood carton, pallets
Supply Ability:
1 unit per month
Highlight:

Precision pharmaceutical filling line

,

High Speed pharmaceutical filling line

,

Precision pharmaceutical bottle packaging line

Product Description

Precision Ampoule Filling Machine for Anesthetics Solutions High Speed Pharmaceutical Production Line with Ultrasonic Rotary Washing Machine


The Precision Ampoule Filling Machine is a high-performance solution engineered for pharmaceutical manufacturers, emphasizing accuracy, efficiency, and compliance. Designed for 1-10ml sterile vials, this machine is ideal for high-speed production lines, ensuring minimal downtime and maximum productivity.

Equipped with a precise dosing system and closed-loop control technology, the Ampoule Filling Machine guarantees consistent filling accuracy of ±1%, meeting the strictest regulatory standards. The machine's nitrogen flushing system ensures minimal oxygen exposure, preserving the integrity of sensitive pharmaceutical products.

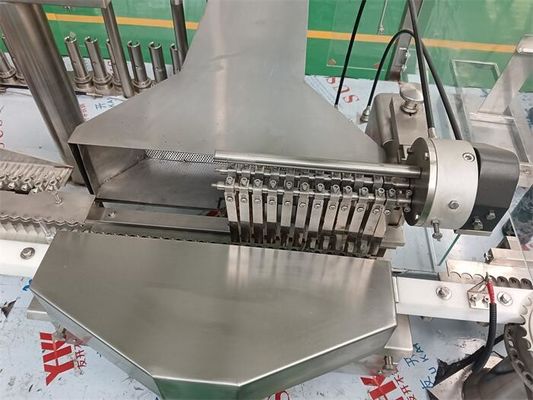

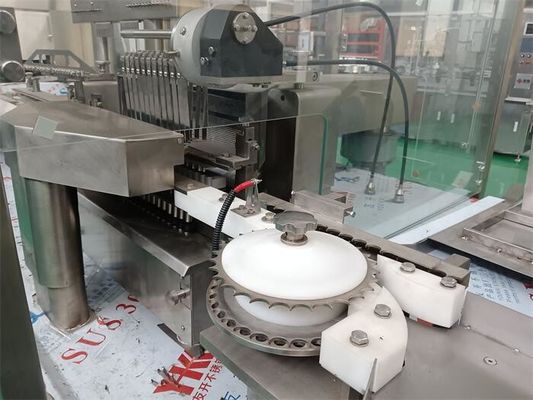

Precision Ampoule Filling Machine for Anesthetics Solutions High Speed Pharmaceutical Production Line with Ultrasonic Rotary Washing Machine 0Precision Ampoule Filling Machine for Anesthetics Solutions High Speed Pharmaceutical Production Line with Ultrasonic Rotary Washing Machine 1

Configuration Details
Number of Filling Needles Configurable based on output needs
Filling Accuracy ±1%
Cycle Time Optimized for high-speed production
Vial Compatibility 1-10ml, round or special shapes
Material Compliance 316L stainless steel and FDA-approved


technical parameters

product model LYQCL100+LYASMR
620/43+LYAGF8
size range 1-20ml national standard ampoules
Output(1-2ml) 16000-22000pcs/h
Output(5-10ml) 8000-12000pcs/h
Output(20ml) 5000-7000pcs/h
Clarity >99%
Breakage rate ≤1%(whole line)
Filling Precision ±0.5-2%(according to pharmacopoeia standard)
Water Consumption and Pressure 0.2-0.4Mpa / 0.6-1.0m³/h
Cleaning CA Consumption and Pressure 0.3-0.6Mpa / 35-80m³/h 0.3-1.0Mpa / 35-80m³/h
Sealed gas Gas(liquefied gas)+oxygen, oxyhydrogen generation gas, natural gas
Oxygen consumption 0.2-0.3Mpa,1.2-1.5m³/h
Gas consumption 0.1-0.3Mpa,1.5-2.5m³/h
Exhaust volume 3500-4100m³/h
Net weight 7800(kg)
Total power around 72kw 380V 50HZ
Outline size around 9940x2260x2445mm


** Configuration** Details
Number of Filling Needles 12 needles
Suitable Vial Size 1-10ml
Output Capacity ≥24,000 vials/hour
Accuracy ±1%
Nitrogen Consumption 0.2-0.3 Mpa, 1.5-2.5 m³/h

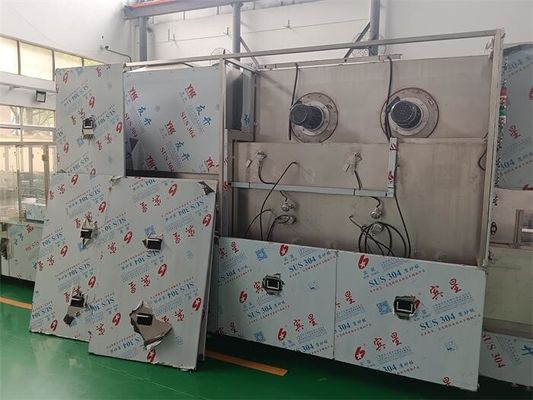

Precision Ampoule Filling Machine for Anesthetics Solutions High Speed Pharmaceutical Production Line with Ultrasonic Rotary Washing Machine 2


The Precision Ampoule Filling Machine is designed for seamless integration into modern pharmaceutical production lines. Its user-friendly HMI interface, combined with real-time monitoring, allows operators to track production parameters effortlessly. The machine's structure is built with 316L stainless steel, ensuring durability, hygiene, and resistance to corrosion.

This machine is also distinguished by its fast changeover capabilities, enabling quick adjustments between different vial sizes without tools. This feature reduces production downtime and increases overall efficiency, making it a versatile choice for manufacturers with diverse production needs.

Whether you're producing vaccines, biologics, or other injectable drugs, the Precision Ampoule Filling Machine delivers unmatched performance, precision, and reliability. Its advanced features and robust construction make it an essential asset for any pharmaceutical production facility.


This Ampoule Filling Machine is your reliable partner for achieving high-precision, high-speed pharmaceutical production with minimal effort and maximum quality.

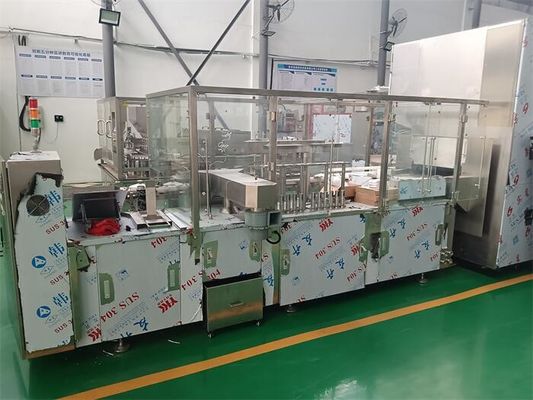

Precision Ampoule Filling Machine for Anesthetics Solutions High Speed Pharmaceutical Production Line with Ultrasonic Rotary Washing Machine 3Precision Ampoule Filling Machine for Anesthetics Solutions High Speed Pharmaceutical Production Line with Ultrasonic Rotary Washing Machine 4
