Multi Function Cartoning Machine For Pharmaceutical, Cosmetic, Food Production With Auto Control

Multi Function Cartoning Machine For Pharmaceutical, Cosmetic, Food Production With Auto Control

Brand Name: Lingyao
Model Number: LYWZH-180
MOQ: 1 pc
Price: 40,000-150,000 USD per piece
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5 pcs per Month
Detail Information
Place of Origin:
China(Thailand available soon)
Certification:
CE
Application:
Pharmaceutical, Food, Cosmetic Packing
User:
Pharmaceutical Plants, Cosmetic Factories, And Food Production Units
Function:
Cartoning
Automatic:
Fully Automatic
Available Packing Material:
Aluminum-plastic Blister Plate, Bottle, Injection Tray, Ointmentand Rectangular Or Slice Containing Regular Items
Main Body Material:
304 Stainless Steel
Automation Level:
Fully Automatic
Recognition Capability:
Infrared Recognition
Standard:
GMP
System:
PLC Control System
Screen:
SIEMENS Touch Screen
Packaging Details:
carton, wood carton, pallets
Supply Ability:
5 pcs per Month
Highlight:

Auto Control Cartoning Machine

,

Food Production Cartoning Machine

,

Multi function Cartoning Machine

Product Description

Multi-function Cartoning Machine for pharmaceutical, cosmetic, food production with auto control



Multi-function Cartoning Machine Description:

The Multi-function Cartoning Machine is a newly developed fully automatic continuous high-speed pharmaceutical cartoning machine by our company. With its innovative design and structure, it operates at high speeds and offers excellent productivity. This Multi-function Cartoning Machine is capable of automatically separating materials, opening cartons, folding leaflets (1-4 folds), automatically cartoning materials, synchronously printing batch numbers (three rows), automatically sealing, and rejecting defective products. This Multi-function Cartoning Machine has a wide range of applications and can meet the packaging needs of pharmaceutical factories, daily chemical factories, food factories, and other industries. THis Multi-function Cartoning Machine reliably packs conventional aluminum-plastic blister packs, bottles, ampoule trays, ointment tubes, rectangular or blister-packed items into specific-sized cartons and seals them before delivery. Retaining all the advantages of a multifunction cartoning machine, it also incorporates several automatic control functions, making the equipment more practical and comprehensive in functionality, significantly enhancing its performance. The structural design of each part of the machine complies with the requirements of Good Manufacturing Practice (GMP) for pharmaceutical production quality management.



Multi-function Cartoning Machine LYWZH-180 Specifications:

Packing Speed 100-180 boxes/min
Available Box Size Range Maximum 160x110x60mm, Minimum 55x30x15mm
Available Manual Size Range Unfolded can be up to A4 paper size
Air Pressure 0.4-0.6Mpa
Air Consumption 0.2-0.4 cbm/min
Noise < 75dB
Weight 2300Kg
Total Power about 2.8KW  380V  50Hz
Size 4300mm L x 1620mm W x 1900mm H without connection part

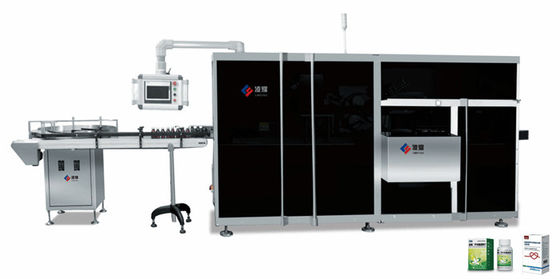

Multi Function Cartoning Machine For Pharmaceutical, Cosmetic, Food Production With Auto Control 0Multi Function Cartoning Machine For Pharmaceutical, Cosmetic, Food Production With Auto Control 1





Multi-function Cartoning Machine LYWZH-180 Performance features:

  1. TheMulti-function Cartoning Machine features a continuous box opening system, a pull-type box opening mechanism, and a mechanical product pushing system for cartoning. Each mechanism is designed rationally, coordinated effectively, and operates with stability and reliability.
  2. The product pushing device is equipped with a stoppage alarm system for when products are not properly loaded into the box, effectively ensuring the quality of cartoned items and the safe operation of the mechanism.
  3. The servo-driven material separation and feeding system for bottle feeding operates at high speed, ensuring efficiency, and reliability.



The continuous box opening system of the machine provides seamless operation, ensuring an uninterrupted supply of boxes for the cartoning process. The pull-type box opening mechanism is designed to efficiently open boxes in a smooth and controlled manner, facilitating the smooth flow of products into the carton. The mechanical product pushing system is carefully engineered to push products into the boxes accurately and securely, guaranteeing precise cartoning with each cycle. The harmonious coordination of these mechanisms results in stable and reliable operation, vital for maintaining consistent production output.

Moreover, the product pushing device is equipped with a sophisticated alarm system that detects any misalignment or improper loading of items into the box. This advanced feature ensures the quality of the cartoned products by alerting operators when issues arise, thereby preventing potential errors and maintaining the integrity of the packaging process. Additionally, the system is designed with the safety of the equipment and operators in mind, providing a safe and efficient working environment.

Furthermore, the servo-driven material separation and feeding system for bottle feeding operates with precision and speed, ensuring high efficiency in the supply of materials to the cartoning machine. The system's reliability is paramount in maintaining a consistent production flow, contributing to overall productivity and performance.
