Carton Packing Machine LYWZH-120 Horizontal Intermittent, Fully Carton/box Packing

Carton Packing Machine LYWZH-120 Horizontal Intermittent, Fully Carton/box Packing

Brand Name: Lingyao
Model Number: LYWZH-1201
MOQ: 1 pc
Price: 40,000-100,000 USD per piece
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5 pcs per Month
Detail Information
Place of Origin:
China(Thailand available soon)
Certification:
ISO1348-2016
Application:
Pharmaceutical, Medical, Bio-health, Food, Cosmetic
User:
Pharmaceutical Plants, Cosmetic Factories, And Food Production Units
Function:
Box Folding, Manual Insert, Carton Packing
Available Products:
Aluminum-plastic Blister Packs, Bottles, Ampoule Trays, And Ointment Packaging
Box Variety:
Color Boxes, Medical Boxes, Medicine Packs
Applicable Box Material:
Paper, Plastic
Main Body Material:
316 Stainless Steel
Box Packing Speed:
80-100 Boxes/min
Automation Level:
Fully Automatic
Recognition Capability:
Infrared Recognition
Packaging Details:
carton, wood carton, pallets
Supply Ability:
5 pcs per Month
Highlight:

fully carton/box packing Machine

,

Horizontal Intermittent Carton Packing Machine

,

LYWZH-120 Carton Packing Machine

Product Description

Carton Packing Machine LYWZH-120 Horizontal Intermittent, fully carton/box packing



The Carton Packing Machine is a cutting-edge solution designed to cater to the specific requirements of pharmaceutical plants, cosmetics factories, food processing facilities, and various other industries. It integrates state-of-the-art technologies from both local and international sources to offer a versatile packaging solution for a diverse range of products.

This advanced machine excels in packaging various items such as aluminum-plastic blister packs, bottles, ampoule trays, and ointments with precision and efficiency. It is proficient in placing these products into designated cardboard boxes, sealing them securely to ensure product integrity, and facilitating their seamless delivery post-sealing.

Equipped with a host of automation features, the Carton Packing Machine streamlines the packaging process effectively. It includes functions like automatic material separation, box opening, insertion of product inserts with multiple folds, product boxing, batch number printing, sealing, and rejection of defective items. Additionally, the machine efficiently inserts tongues at both ends of the boxes, tracks and tallies the filled boxes, and swiftly detects and eliminates missing product inserts.

In instances of missing materials or operational issues like box opening failures, the machine is programmed to halt automatically, preventing errors and maintaining product quality standards. By reducing manual intervention, it significantly enhances operational efficiency and product quality, making it a valuable asset for manufacturing facilities.

Renowned for its swift production pace and operational efficacy, the Carton Packing Machine offers the flexibility of standalone operation or integration into existing production lines, ensuring seamless workflow and heightened productivity levels.



Carton Packing Machine LYWZH-120 Specifications:

Packing Speed 80-100 boxes/min
Box Material Spec 250-350 g/m2
Insert/Manual spec max size no larger than A4 paper
Manual material spec 60-80 g/m2
Air Consumption and Pressure 04-0.6 Mpa / 5-8 cbm/min
Noise <70dB
Weight 1500Kg
Total Power about 1.8KW  380V  50Hz
Size 3200mm L x 1100mm W x 1650mm H

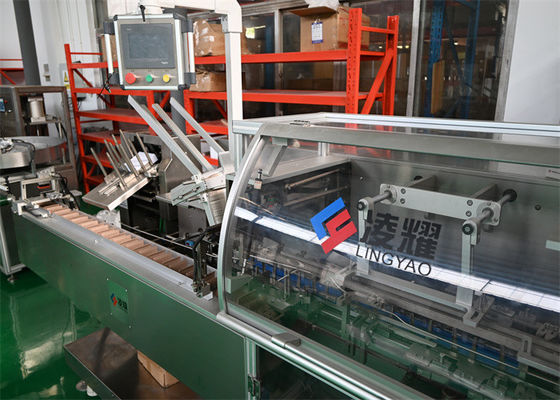

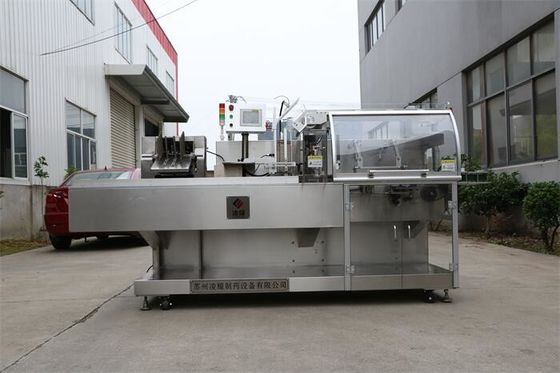

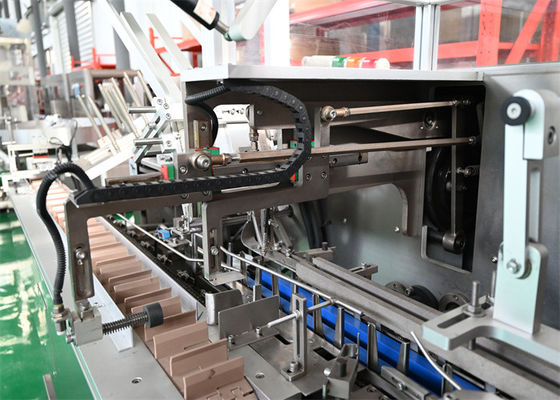

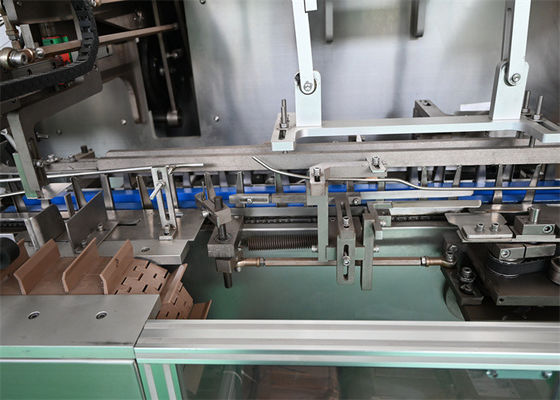

Carton Packing Machine LYWZH-120 Horizontal Intermittent, Fully Carton/box Packing 0Carton Packing Machine LYWZH-120 Horizontal Intermittent, Fully Carton/box Packing 1Carton Packing Machine LYWZH-120 Horizontal Intermittent, Fully Carton/box Packing 2Carton Packing Machine LYWZH-120 Horizontal Intermittent, Fully Carton/box Packing 3



Carton Packing Machine LYWZH-120 Performance Features:

Featuring advanced jog remote control adjustment functionality and a comprehensive array of safety interlocking mechanisms, including emergency stop switches, this innovative machine prioritizes operational safety. Its sophisticated design ensures that operators can fine-tune settings remotely while maintaining a secure operational environment.

The Carton Packing Machineis equipped with a robust vacuum generator that efficiently converts compressed air into a reliable vacuum source for box suction. With minimal noise output, this durable component facilitates smooth and seamless operation, making maintenance tasks simple and hassle-free. Furthermore, the inclusion of air pressure and vacuum protection shutdown systems underscores the machine's commitment to operational safety, providing peace of mind during production processes.

Delivering seamless integration of mechanical, electrical, and pneumatic systems, this cutting-edge equipment leverages variable frequency speed control and a user-friendly PLC-controlled touch screen display. These innovative features empower operators to optimize performance with precision and efficiency. Additionally, the machine is outfitted with protective measures such as overload protection, fault display capabilities, and automatic fault shutdown protocols, enhancing operational reliability and ease of use.
