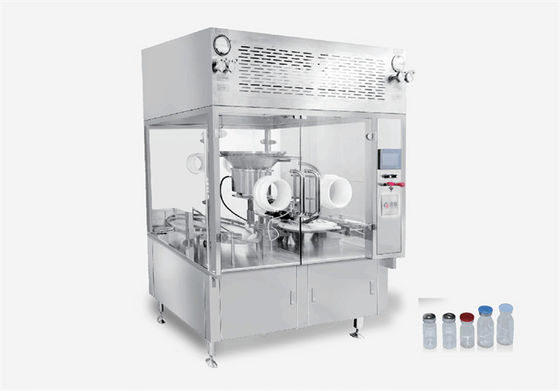

Vials Capping machine for vials aluminum capping, sealing, fulling automatic capping machine
The LYZG series high-speed vials capping machine for glass bottles is specifically designed for the pharmaceutical industry to seal powdered medications such as lyophilized products, antibiotics, and biochemical drugs after they have been accurately metered and packaged by a dosing machine. This vials capping machine is essential for the aluminum cap sealing process.
This series of vials capping machines is suitable for the roll-on sealing of aluminum caps on 3-100ml antibiotic glass bottles. The vial capping machine adopts a single-blade large knife type capping method, ensuring smooth and even crimping and excellent sealing properties. Customers can also contact our company for customized specifications beyond the specified range mentioned.
LYZG vials capping machine Spec:
| technical parameters | |||
| model | LYZG | ||
| Adaptive specification | 3-100ml national standard vials |
||
| Capacity | 3000-24000 pcs/h | ||
| Capping PASS Rate | ＞99% | ||
| Stop Rate without cap | 100% | ||
| Vacuum consumption fir the absorb of aluminumchip consumption(optional) | 300 cbm/hour | ||
| Cleanairconsumption and pressure | 5-8 cbm/hour, 0.6-0.8Mpa | ||
| Net weight | 2300(kg) | ||
| Total power | around 2.5kw 380V 50HZ | ||
| Outline size | around 1820x1060x1750mm | ||
LYZG Vials Capping machine Performance Features:
The vials capping machine employs a cap hanging structure ensuring that caps are only applied when bottles are present, eliminating the risk of uncapped bottles.
The vials capping process of this vials capping machine utilizes a single-blade rolling capping head, guaranteeing high-quality crimping results with a smooth and aesthetically pleasing finish.
The step-less variable speed rotary capping knife enables a soft start, minimizing mechanical impact force, reducing bottle breakage rates, and extending the machine's lifespan.
An optional dust extraction device can be installed to remove aluminum debris generated during the capping process, preventing potential contamination and quality issues caused by aluminum scraps.
The vials capping machine features a bottle indexing system with bottle rejection capability, ensuring efficient bottle handling and quality control.
Controlled by a PLC (Programmable Logic Controller) and a user-friendly human-machine interface system, the vials capping machine operates smoothly and reliably.
