Electric Tyvek Pouch Medical Heat Sealer for Pharmaceutical 5KW

Electric Tyvek Pouch Medical Heat Sealer for Pharmaceutical 5KW

Brand Name: Lingyao
Model Number: LY120A
MOQ: 1 unit
Price: USD 5,000-50,000 per unit
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 pcs per month
Detail Information
Place of Origin:
China(Thailand available soon)
Certification:
ISO1348-2016
Control System:
Digital
Labeling Type:
Semi Automatic
Standard:
GMP
Power Supply:
380V/50Hz
Model:
LY120A
Application:
Pharmaceutical
Material:
Stainless Steel
Power Source:
Electric
Packaging Type:
Wooden Case
Frequency:
50Hz
Sealing Speed:
0-12m/min
Sealing Length:
300mm
Temperature Range:
0-300℃
Power:
5KW
Size:
1200mm X 800mm X 1650mm
Packaging Details:
carton, wood carton, pallets
Supply Ability:
10 pcs per month
Highlight:

Tyvek Pouch Medical Heat Sealer

,

5KW Medical Heat Sealer

,

Pharmaceutical medical pouch heat sealer

Product Description

The 5-25 times per minute cutting frequency heat sealing machine lingyao LY120A Tyvek Heat Sealing Machine



The 5-25 times per minute cutting frequency heat sealing machine for the medical industry offers several advantages:

High Productivity: The machine's cutting frequency of 5-25 times per minute ensures efficient and rapid processing of medical packaging, leading to higher productivity levels compared to slower machines.

Consistent Sealing Quality: The consistent cutting frequency helps maintain uniform sealing quality across a large number of packages, reducing the chances of errors or inconsistencies in the sealing process.



Model LY-120A
Cutting Frequency 5-25 times/min
Tooling layout according to product size
Tooling max size 500mm X 400mm
PET thickness 0.3mm-1.0mm
Dialysis Paper 50-100g x 620
Air pressure and consumption 0.6-0.8 Mpa/10-20 cbm/hour
Voltage/Frequency 220V/50Hz
Total Power 5KW
Machine Size 1200mm x 800mm x 1650mm
Weight 500 KGs

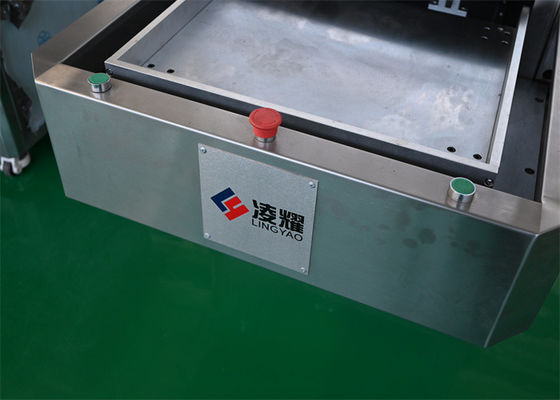

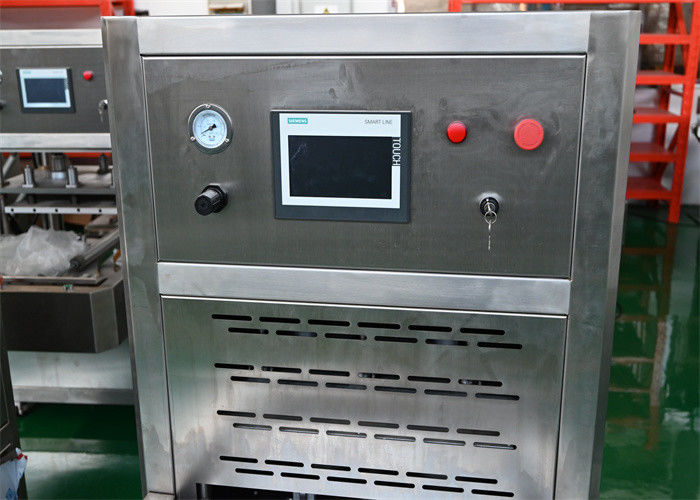

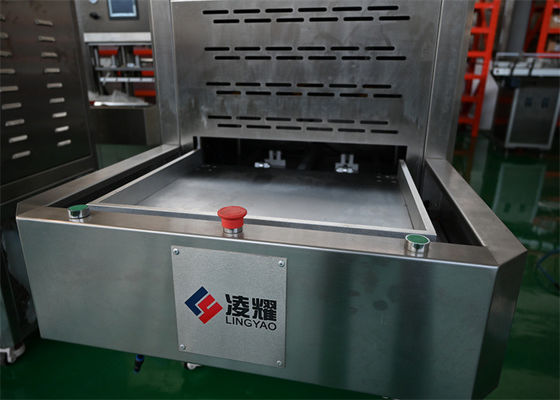

Electric Tyvek Pouch Medical Heat Sealer for Pharmaceutical 5KW 0Electric Tyvek Pouch Medical Heat Sealer for Pharmaceutical 5KW 1





The Tyvek heat sealing machine works by using heat and pressure to seal Tyvek material, which is a type of high-density polyethylene (HDPE) material made by DuPont. Here is a general overview of how a Tyvek heat sealing machine typically works:

  1. Preparation: The Tyvek material to be sealed is placed between the sealing bars of the machine.

  2. Heating: The machine heats the sealing bars to a specific temperature suitable for sealing Tyvek material. The heat softens the material, allowing it to bond together when pressure is applied.

  3. Pressure: The sealing bars come together under pressure, pressing the heated Tyvek material together to create a strong seal.

  4. Cooling: After the sealing process is complete, the sealed Tyvek material is allowed to cool down and solidify, ensuring a secure bond.

  5. Trimming: In some cases, the excess material may be trimmed off to create a clean and neat seal.

  6. Quality Check: The sealed Tyvek material may undergo a quality check to ensure that the seal is strong, secure, and meets the required specifications.

Overall, the Tyvek heat sealing machine combines heat and pressure to effectively seal Tyvek material, creating airtight and secure seals for various applications, including medical packaging, protective clothing, and other industries.
